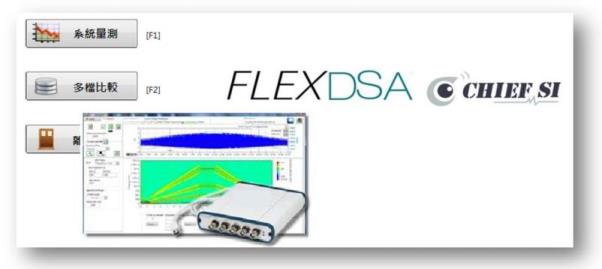

Customized Noise and Vibration Measurement Tool
Can you specify the difference between Noise and Vibration measurement and other measurements? Can you make accurate Noise and Vibration measurements by selecting complicated functions? High cost analysis software? Our FleXDSA provide you：
- Dynamic measurement solution for Noise and Vibration
- Multi-function of personality module(Option)
- Sensor, DAQ and Analysis software
- Reasonable price
- Local support and service
Feature：
- Bandwidth 100 kHz Max.
- 24-bit high resolution
- Analysis function: YT Graph, Real-time FFT, Water Fall, FRF, Vibration Level
- Optional function: SRS, Order, Octave, Floor Vibration
- Built-in multi-spectrum comparison
- Output file format UFF supported
- Built-in sound out function
- EXCEL format (.xls, .xlsx) supported
Applications：
- Alternated spectrum analyzer；Vibration measurement, record and analysis；Noise measurement, record and analysis
- Motor vibration, Engine noise, Building floor vibration, and Tool machine vibration measurements.
|
Channels
|
2, 4, 5, 8, 16
|
|
Analysis Bandwidth
|
102.4k Max.
|
|
Simultaneous sampling
|
Yes
|
|
Resolution
|
24-bit
|
|
IEPE Support
|
Yes
|
|
Input Couple
|
AC or DC
|
|
AC Cutoff(Hz)
|
1Hz or 3.4Hz
|
|
Signal Output
|
SINE, Swept sine, White noise, Pink noise
|
|
FFT
|
FFT、Power spectrum、Power spectrum density
|
|
Windows type
|
Hanning、Hamming、Blackman、Flat Top
|
|
Averaging mode
|
Vector、RMS、Peak Hold
|
|
Weighting mode
|
Linear、Exponential
|
|
Format
|

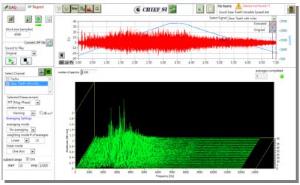

Spectrum、Phase、Water fall Diagram
|
|
FRF
|
H1/H2/H3 mode、Magnitude & Phase、Coherence
|
|
Vibration Level
|
Display acceleration and velocity value
|
|
Statistical computation
|
Every channel Mean、Max、Min、P to P、RMS
|
|
Multi-Spectrum comparison
|
Yes
|
|
UFF Output
|
Yes
|
|
Sound Output
|
Yes
|
|
Data Output Format
|
Excel（Data and graph included）
|
|
SRS (Optional)
|
SRS+, SRS-, SRSa (ABS[SRS+, SRS-]), Maximax SRS
|
|
Order (Optional)
|

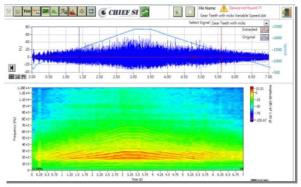

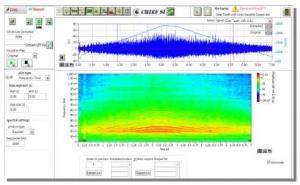

Color Map、Order Extract、Sound to Play
|
|

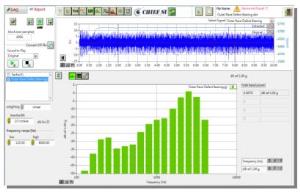

Octave (Optional)
|
1/24、1/12、1/6、1/3 Oct
|
|
Floor Vibration (Optional)
|
VC-A/B/C/D/E
|
|
Support Language
|
Traditional Chinese
|
|
CPU
|
Higher than Pentium 4, RAM:1GB, HD:1GB, USB 2.0
|
|
OS
|
XP、Win 7
|
|
Monitor required
|
1280*800 resolution
|

Optional Item：
|
Engine Tachometer
|
Chief ENG01
|
|
Engine Revolution Probe
|
Chief PB01
|
|
