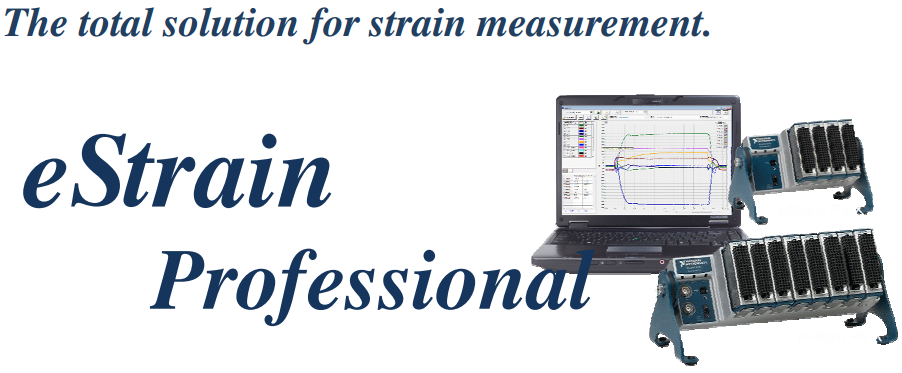

eStrain Professional

Makes accurate strain measurement easy to do： Precise strain management is not easy. It is subject to environmental factors requiring the gauge, wire resistance and temperature be adjusted. As a result, users unfamiliar with all aspects of strain management may measure the wrong information. With eStrain, the capacity to correct for lead wire resistance, temperature effects on the wire and gauge, shunt calibration and balance functions are built into the system. Both beginners and experienced professionals can simply sets it up and eStrain provides complete, accurate results. System features： Set up is simple, and it is easy to use. Strain correction is complete, providing the most accurate measurement results. Simultaneous measurement and flexible channels. Built in hardware filter suppresses noise interference. Wiring is simple and signal stability is high. Supports IPC-9704 PCB measurement and analysis. Applications： Material testing, mechanical testing, drop testing, and the strain of teaching. PCB Strain measurements, wafer strain measurements, and concrete strain measurements. Civil/ mechanical/ vehicle / biomedical stress measurement. Finite element analysis testing and validation. Long time stress monitoring for structures. Specification： Model eStrain P4-X-O (Maximum 32 Channels) eStrain P8-X-O (Maximum 64 Channels) (up to 128 Channels with two sets) (X：Channels, O：Gauge Resistance, 120 或350) Input Power 100~240V AC 10A Interface USB2.0 Channels 8, 16, 24, 32, 40, 48, 56, 64 Bridge Type 1/4Bridge Gauge Resistance 120 or 350 Ω (2-wire/3-wire) Specify the gauge resistance when ordering Strain Range (ue) 40000 Sampling Speed(Multiplexer) 10k, 5k , 2.5k, 2k, 1k, 500, 200, 100 Simultaneous Yes Continuous Recording Yes (Depends on Disk Space) Large Files Analysis Yes (>500MB) Auto Balance Function Yes Shunt Cal. Yes Temperature Compensate Yes(Additional optional temperature Module) Lead wire correct Yes Trigger Function Yes Gauge parameter GF, Gauge Resistance, Lead wire Resistance Time Waveform Graph Yes (4 Y-T Chart) Meter Display Yes (64 Self-Define Meter) XY Graph Yes Waveform Zoom Function Yes Real time Stress Calculate Yes Principal Strain Analysis Yes IPC-9704 Strain Rate Analysis Yes Output Data format EXCEL / ASCII Language English, Traditional Chinese Computer Requirements CPU:P4, RAM:1GB, HD:1GB, USB 2.0 Monitor requirements 1280*800 resolution Operating system Windows XP, VISTA, WIN 7 Optional items： Bridge Box Chief BT120 / Chief BT350 Strain lesson plans Chief TP01 Voltage Box Chief VT10 Strain Simulator Chief SS01 Strain training Course Chief SC01 Wireless Strain Module Chief WS01   Promotion： If you are interesting in the eStrain,please download the catalog and contact us now. A sales representative will contact with you as soon as possible.
